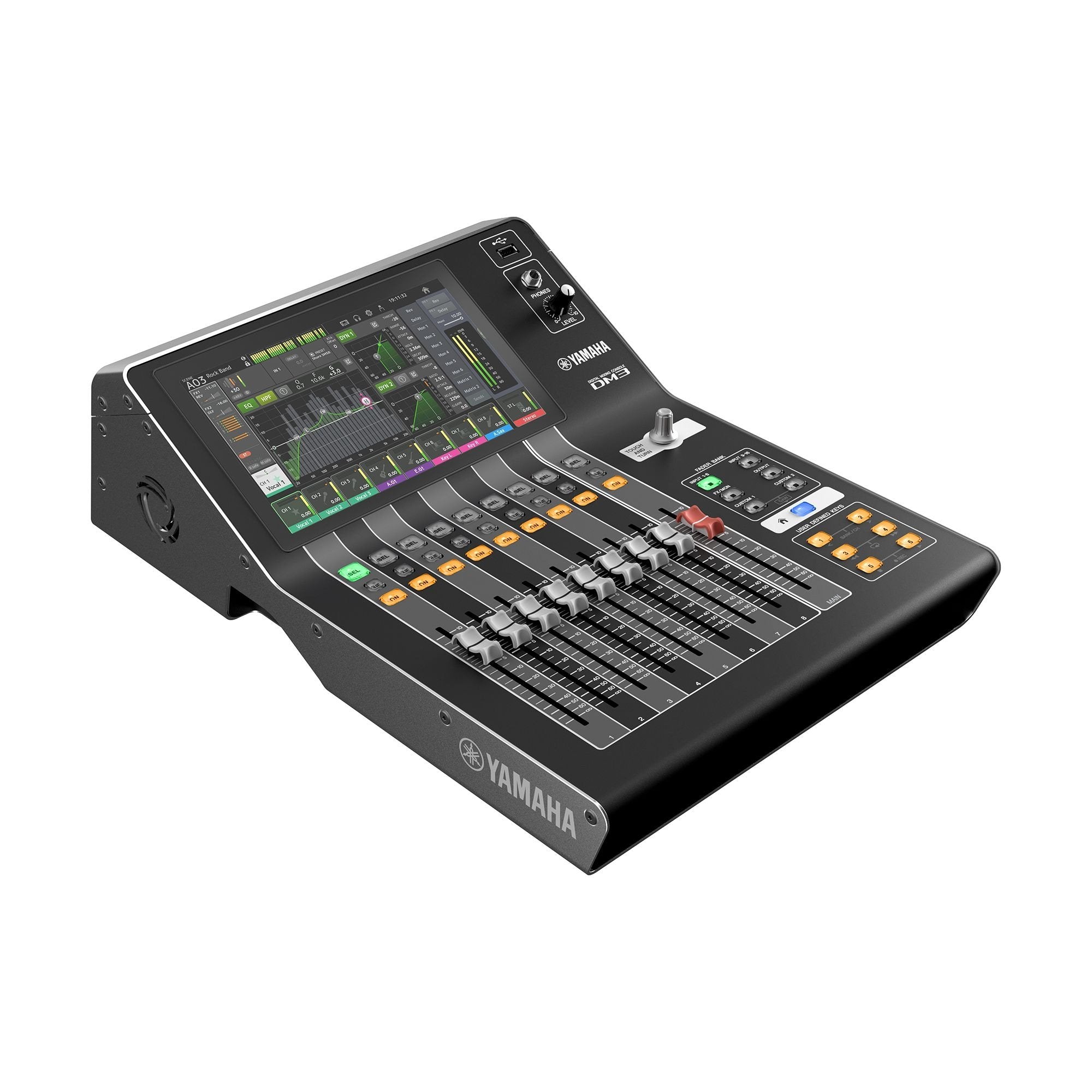

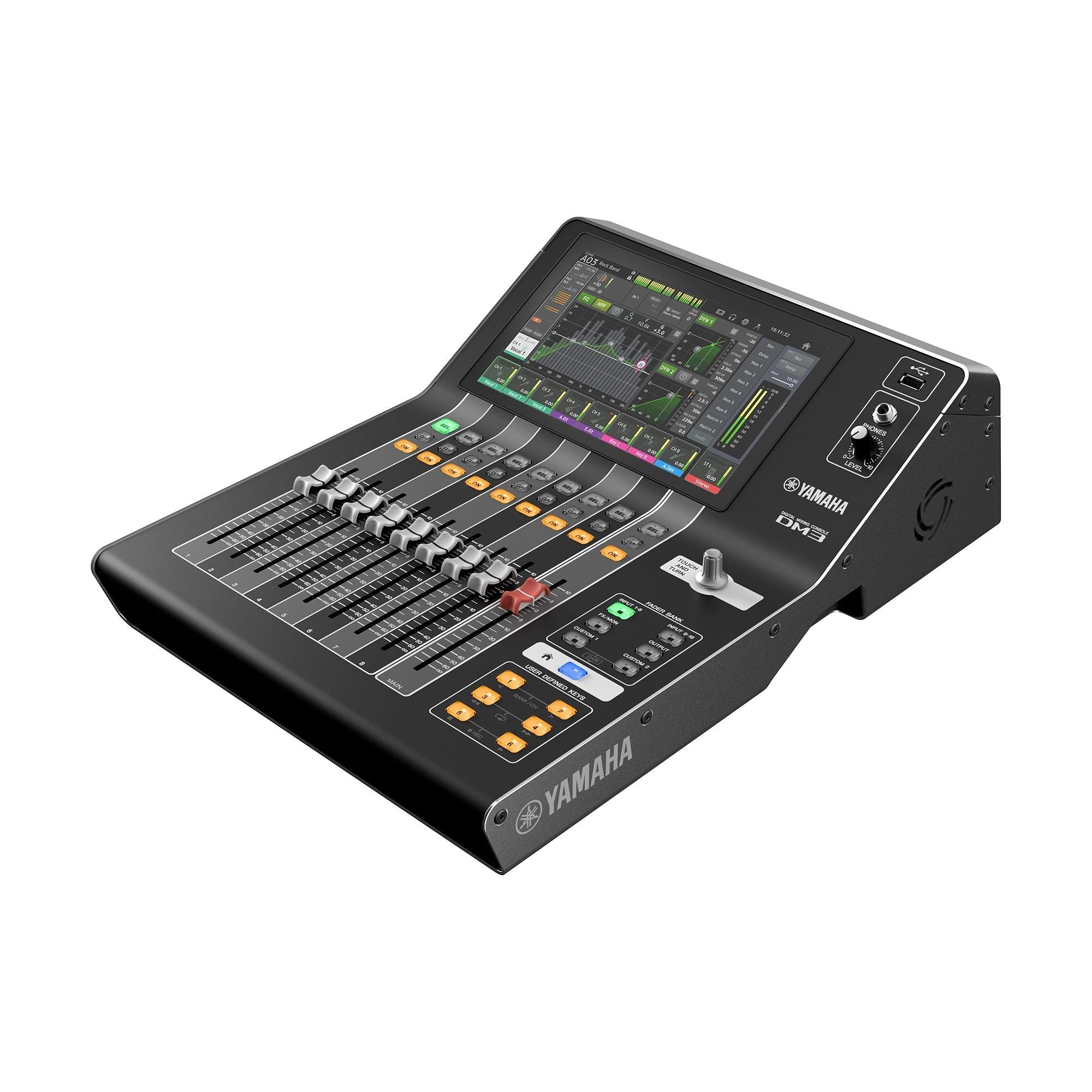

Yamaha DM3-D Compact Digital Mixing Console with Dante

Compact and portable mixers are essential in any indoor or outdoor drum corps show and the Yamaha DM3 series of mixing consoles, offer superb sound quality, fast, easy setup, operation, and professional-level features.

The DM3-D is an ultra-compact 22 Channel digital mixer is capable of 96kHz sample rates and Dante connectivity. The DM3 Series continues the Yamaha tradition of reliable and great sound offering you the perfect canvas for mixing, recording, and streaming from a company that knows how to create music. When not on stage, DM3-D can be used as a DAW controller in the home studio. Built to make mixing easy the console encourages the engineer to focus on the music, utilizing a best in class, 9” touchscreen and a single Touch & Turn knob for managing most of the operation.

What is Dante? Dante is used in a more complex audio systems where front of house and stage engineers use the same network. Dante simplifies cable management by replacing all of those connections with a computer network, effortlessly sending video or hundreds of channels of audio over slender Ethernet cables with perfect digital fidelity.

Packed with Software tools:

• DM3 Editor - DM3 Editor is a stand-alone application for Windows or Mac that works for both online operation and offline configuration and editing.
• DM3 StageMix - DM3 StageMix is an iPad application that enables remote control of the DM3 Series through a simple and intuitive graphical interface. The engineer can control the mix parameters from the performer's position on the stage.
• MonitorMix - The MonitorMix application for iOS and Android devices put control of each performer's monitor mix into the palm of their own hand.
• ProVisionaire Control/Touch - The ProVisionaire Series is software that allows you to create control panels tailored to your installation and operation methods to remotely control and monitor your equipment. ProVisionaire Control for Windows and ProVisionaire Touch for iPads offer control of a wide range of devices, including the DM3 Series.

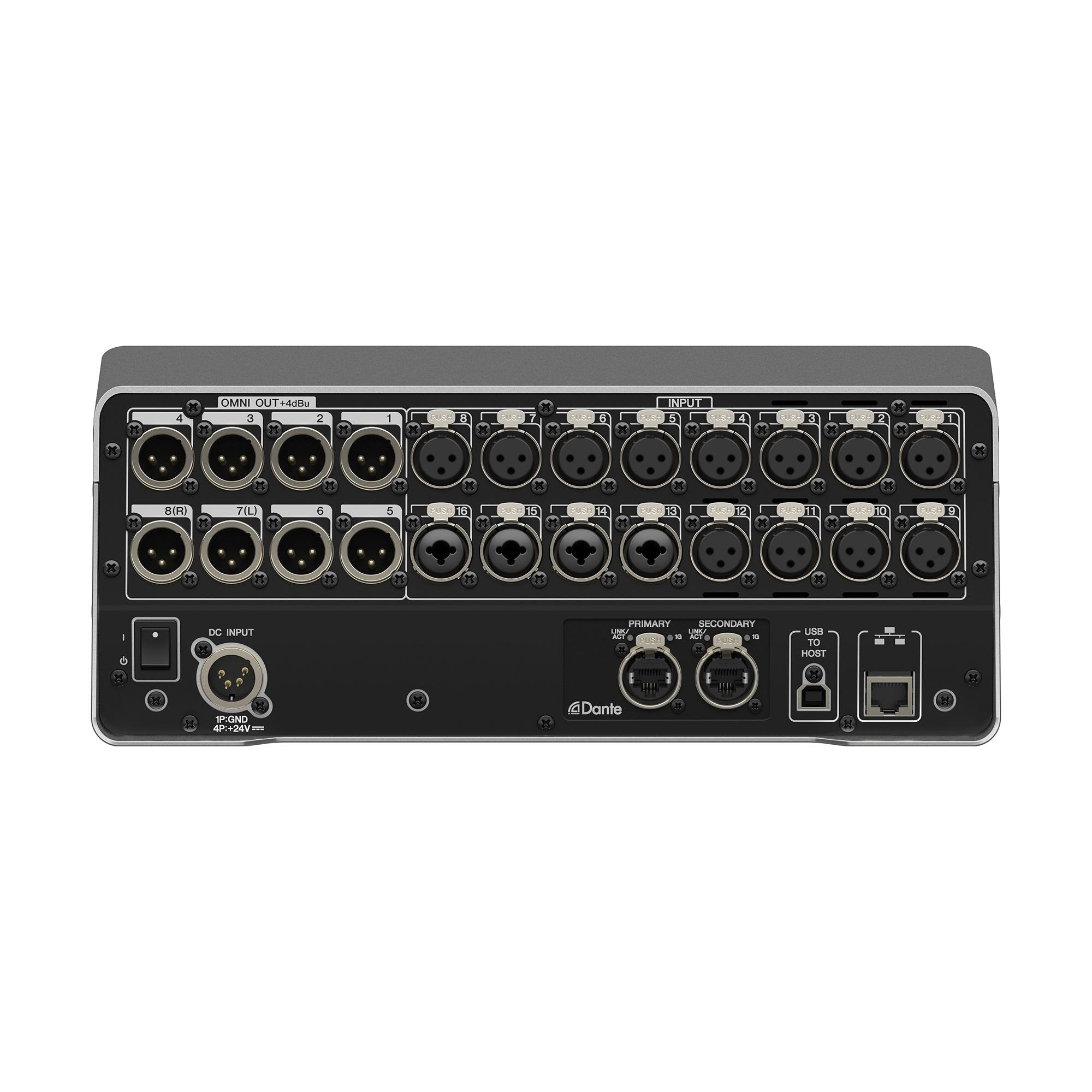

Connectivity and Specifications:

• Renowned Yamaha sound quality with 96kHz sample rate
• 22 Channels (16 Mono / 1 ST / 2 ST FX RTNs)
• 6 Mono or 3 ST Mixes / 2 Matrixes / 1 ST Bus
• 16 Professional Yamaha Pre-Amps (12x XLR + 4x Como Jack)
• 8 Analog Outputs (XLR)
• 16x16 Dante Interface
• 18x18 USB Audio Interface for playback and recording and 2x2 USB recorder

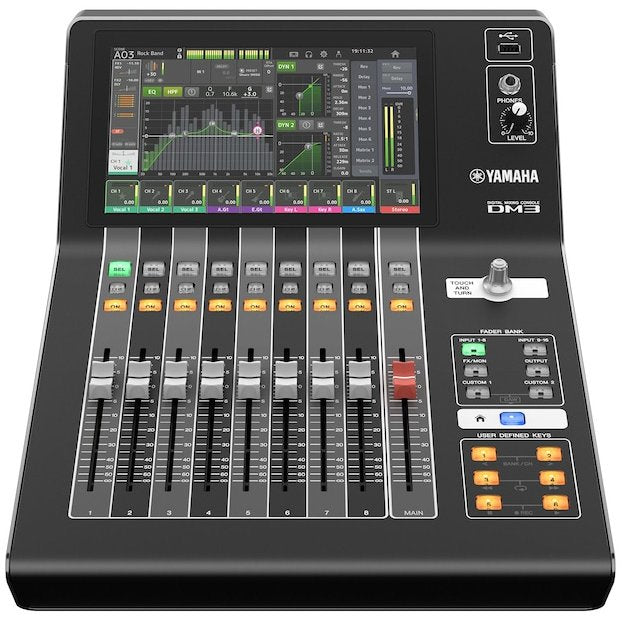

• Best in Class 9" Touch Screen
• DAW Remote Mode including transport control
• Custom control via OSC, USB-MIDI and Provisionaire
• Bundled with Cubase Al
