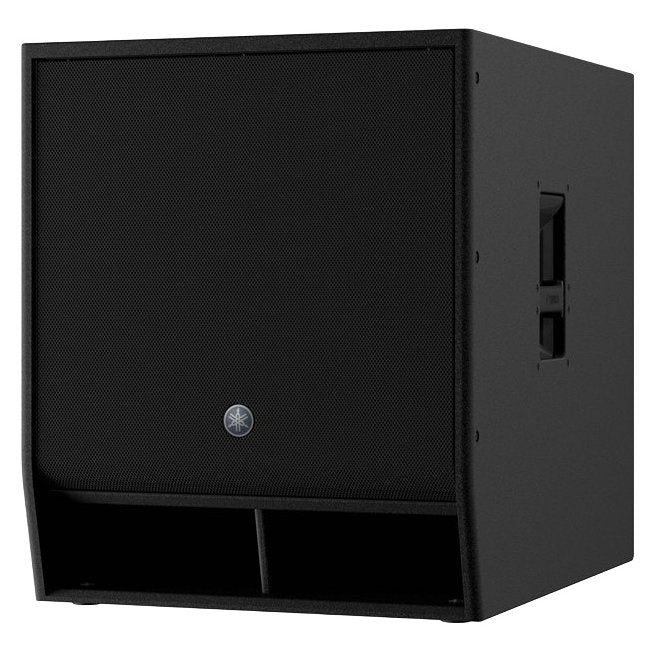

Yamaha 18" DXS XLF Powered Subwoofer

The Yamaha DXS18XLF-D 18" Powered Subwoofer is the Dante-equipped version of Yamaha's DXS18XLF. At its core is an 18" proprietary transducer with a 4" voice coil, ferrite magnet, die-cast aluminum frame, and dual damper, the latter of which significantly reduces unwanted movement and distortion during high output, contributing to the DXS18XLF-D's clean low-end performance down to 30Hz.

The onboard D-XSUB DSP processing gives engineers three distinct low-frequency modes to work with. Normal mode delivers a balanced, natural low-frequency response. Boost mode tightens and focuses the bass with additional punch. Xtended LF mode pushes the low-frequency extension further than you'd typically expect from an 18" cabinet, useful for applications requiring maximum sub-bass presence. In multi-sub configurations of two or more units, Cardioid Mode redistributes output directionally, reducing stage-side SPL while increasing low-frequency energy toward the audience, resulting in a cleaner monitor mix and a more controlled stage environment.

The "D" designation indicates full Dante integration via dual etherCON CAT5e ports supporting daisy-chain topology, 2IN/2OUT at sample rates up to 96kHz, and SRC for compatibility with 48kHz devices. This pairs naturally with Yamaha CL/QL consoles, with simplified patching from the I/O device display, and TF console users have access to Quick Config for fast system setup. The 1600W Class-D amplifier runs on a 96kHz DSP backbone with AD/DA conversion to match, and the Polyurea-coated plywood enclosure holds up well in demanding touring and install environments.

Features & Specifications

• 18" powered bass-reflex subwoofer
• 1600W dynamic power (1300W burst, 1200W continuous), Class-D amplifier
• Frequency range: 30Hz–150Hz (-10dB)
• Maximum SPL: 136dB (peak, 1m, pink noise)

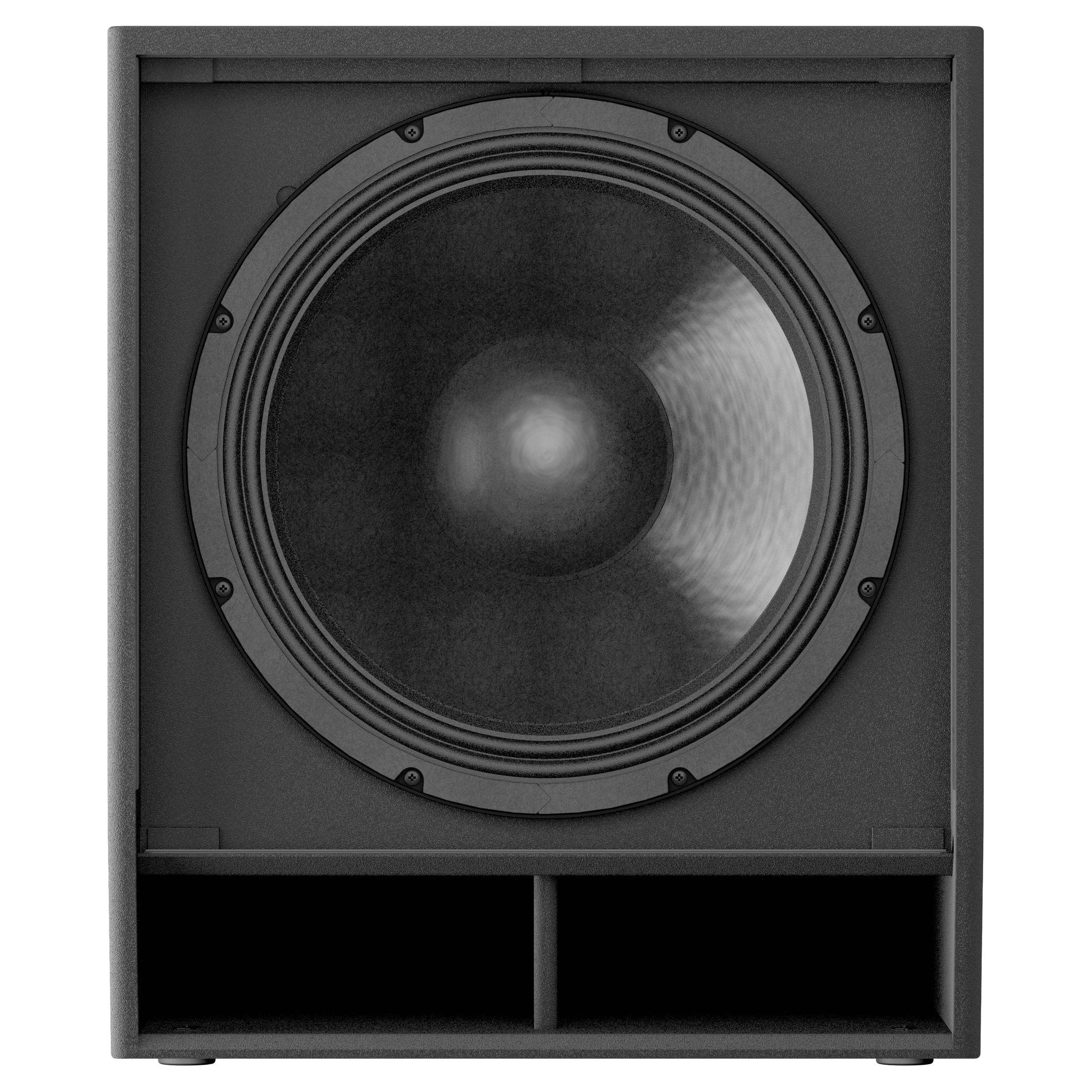

• 18" cone transducer: 4" voice coil, ferrite magnet, die-cast aluminum frame, dual damper
• 96kHz DSP with D-XSUB processing: Normal, Boost, and Xtended LF modes
• Cardioid Mode for directional low-frequency control in multi-sub configurations
• Dante I/O: etherCON CAT5e x2 (daisy chain), 2IN/2OUT, SRC, 1000BASE-T
• Analog I/O: Combo x2 in, XLR x2 out (THRU or DSP OUT)
• USB 2.0 for settings storage and recall
• Pole socket: Φ35mm (depth 80mm), M20 threaded
• Durable Polyurea-coated plywood enclosure
• Aluminum die-cast side handles x2
• Dimensions: 550 x 657 x 720mm (21.7" x 25.9" x 28.3")
• Weight: 48.9kg / 107.8 lbs

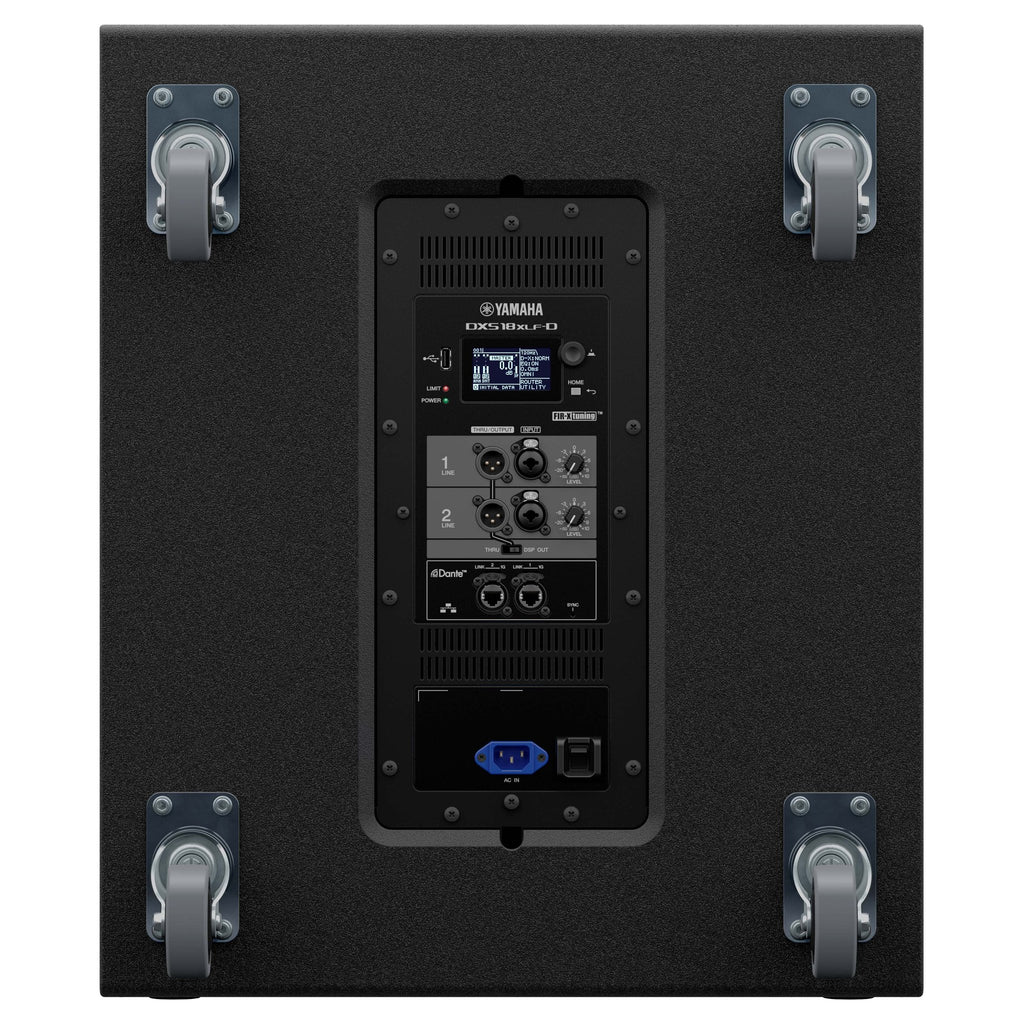

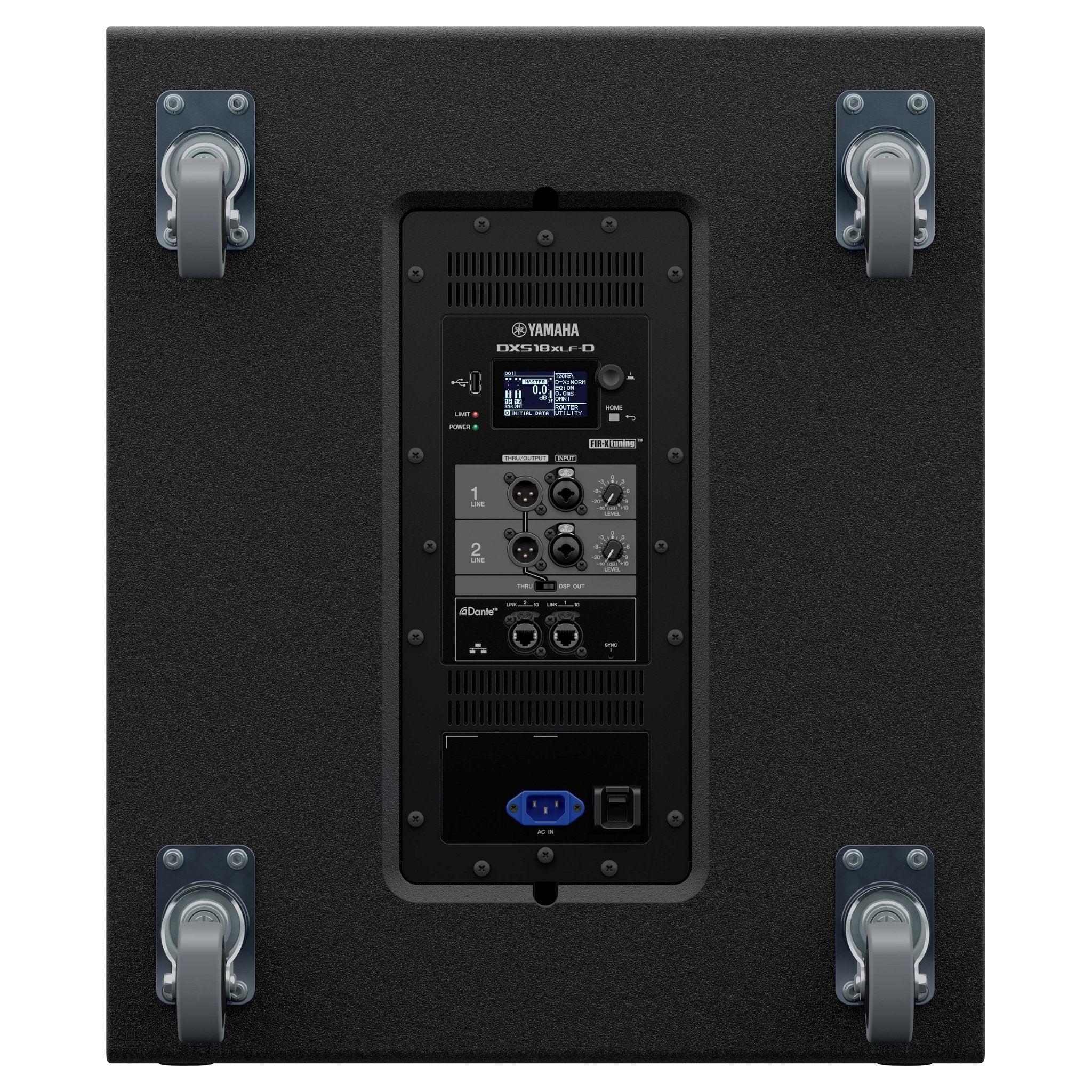

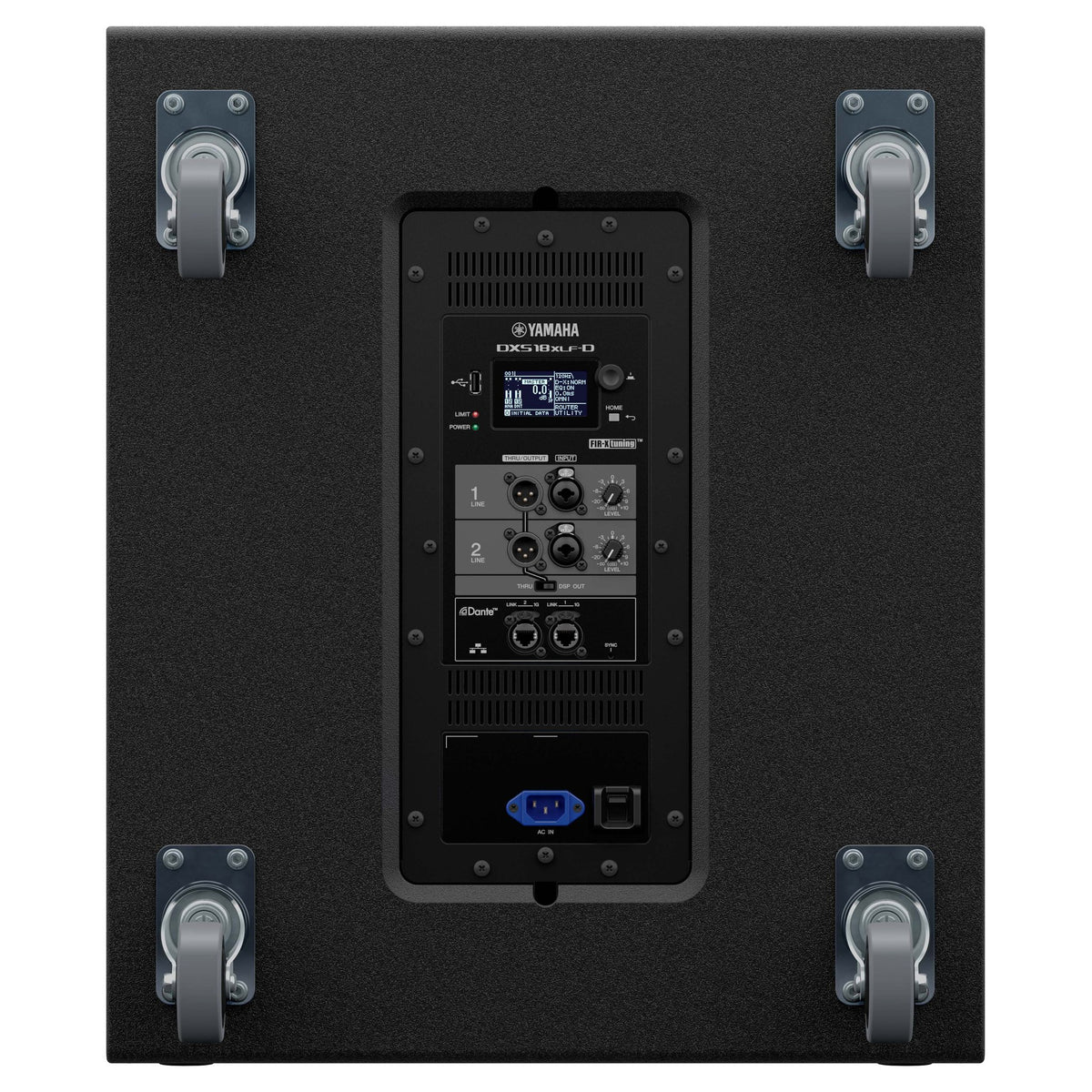

• Optional accessories: SPCVR-DXS18X cover, SPW-1 caster kit
