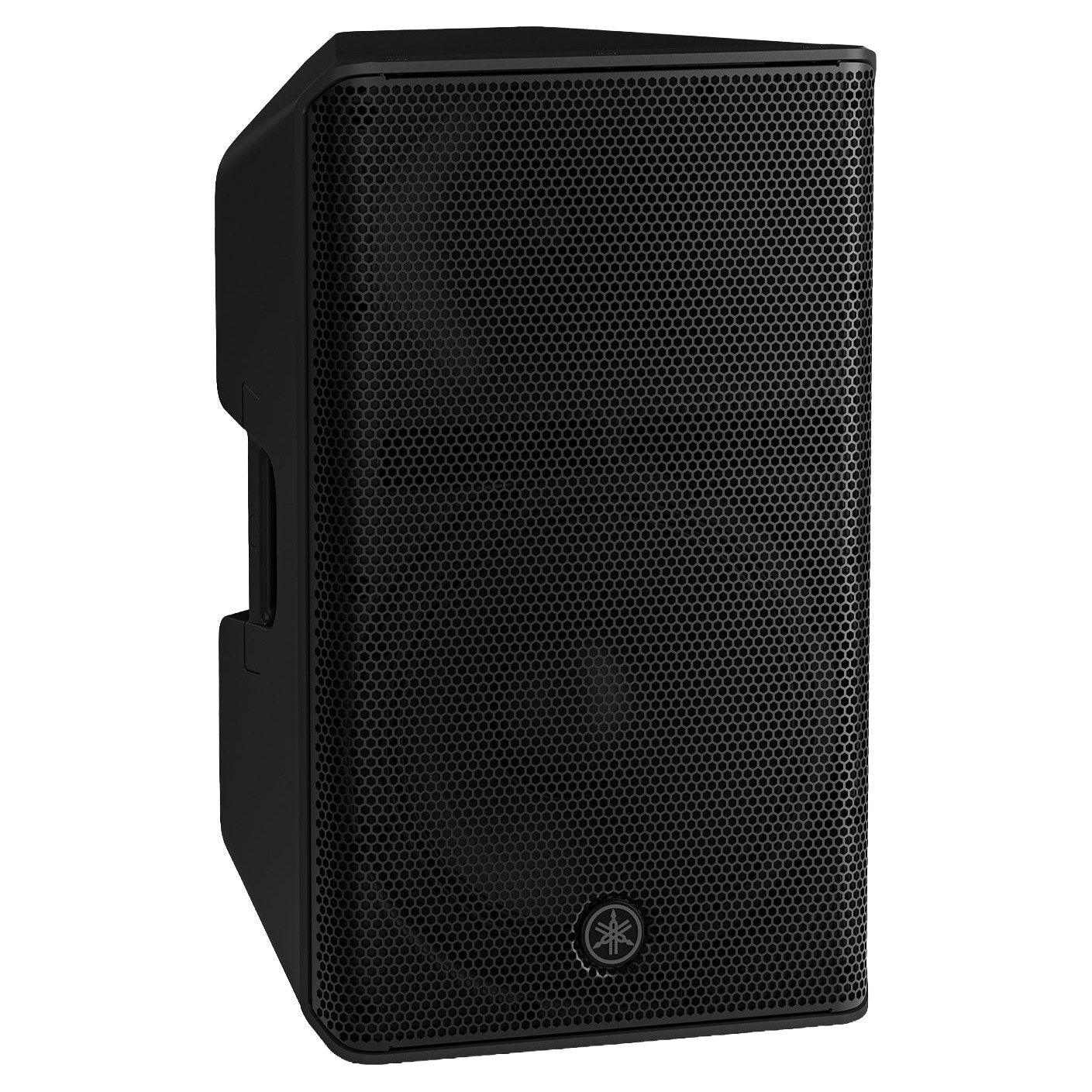

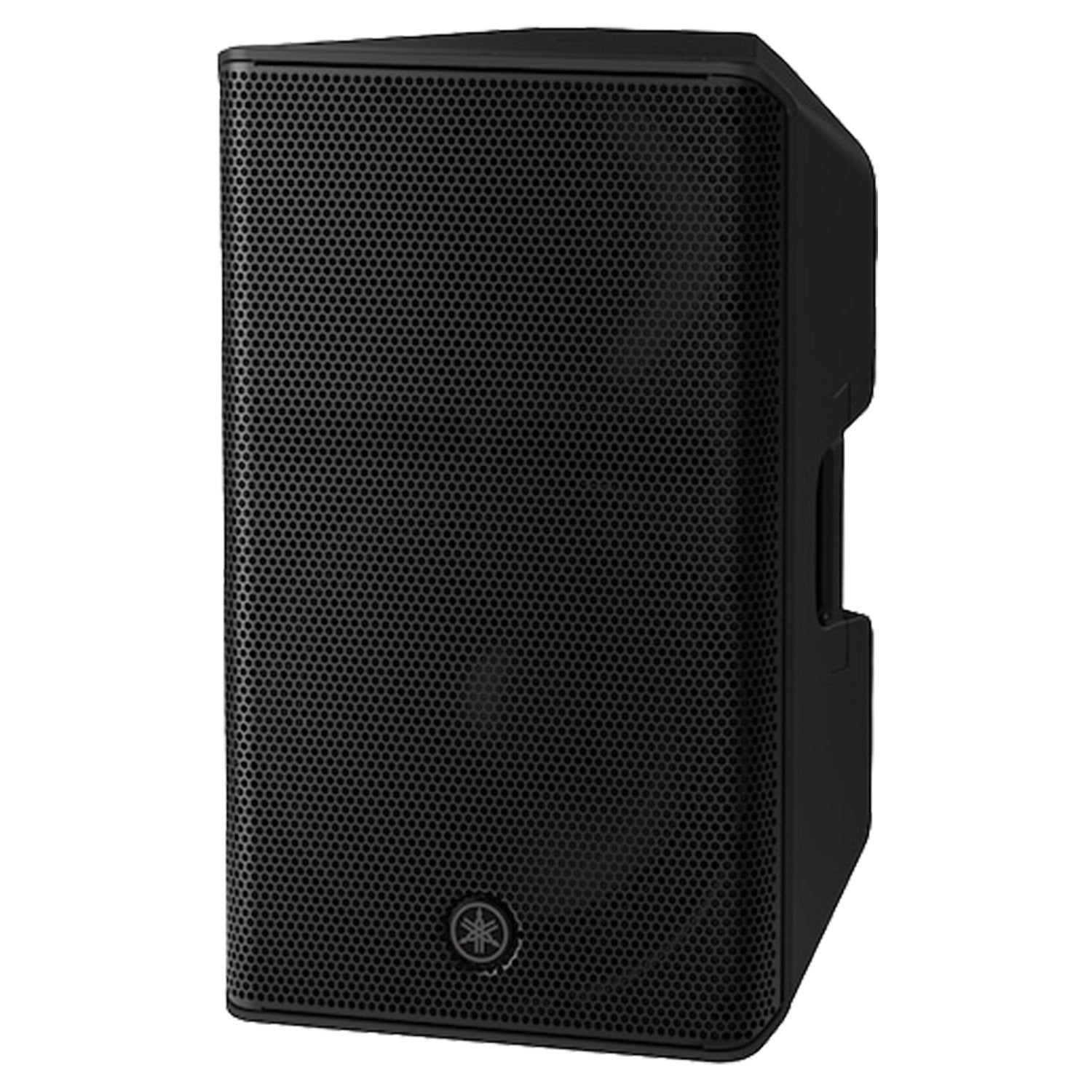

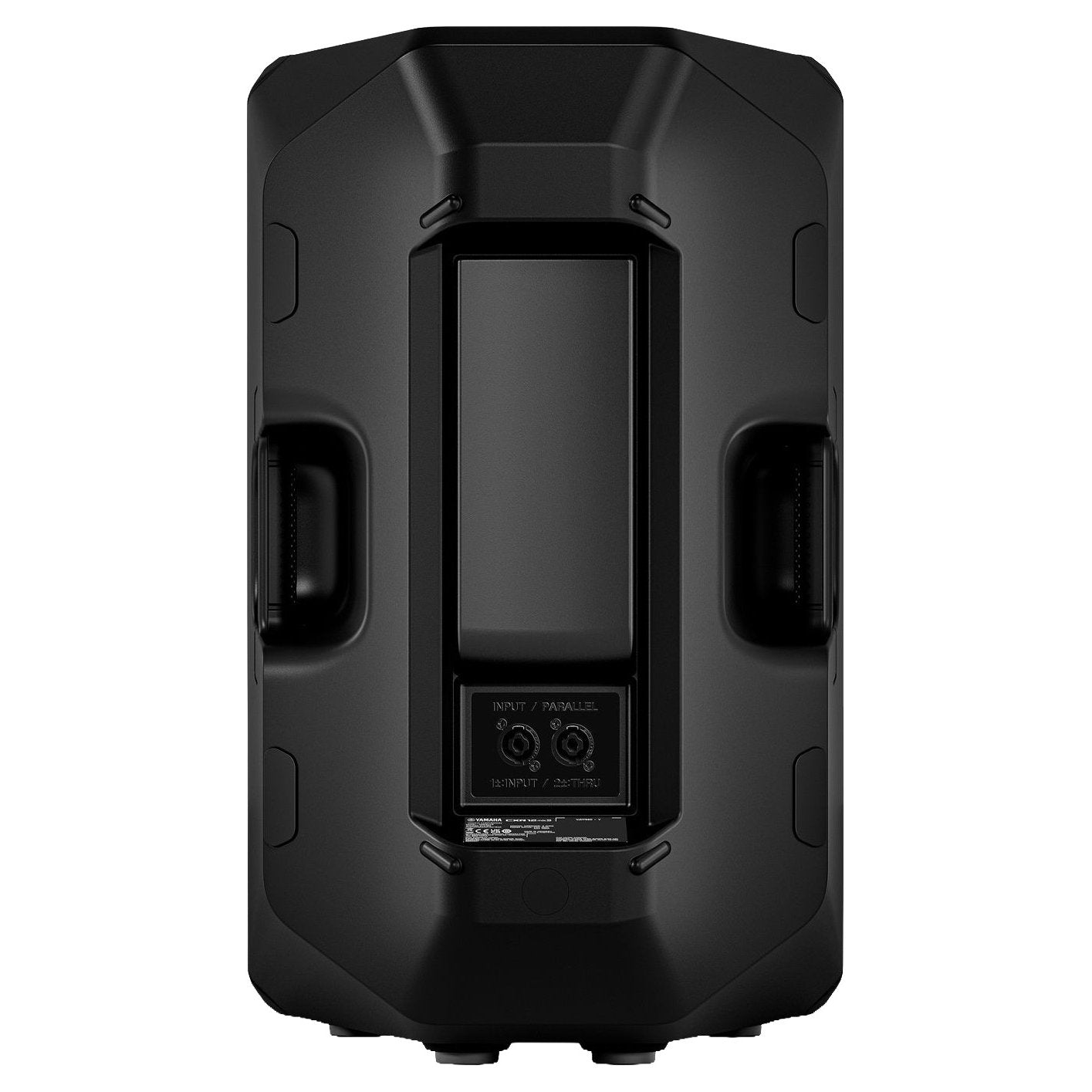

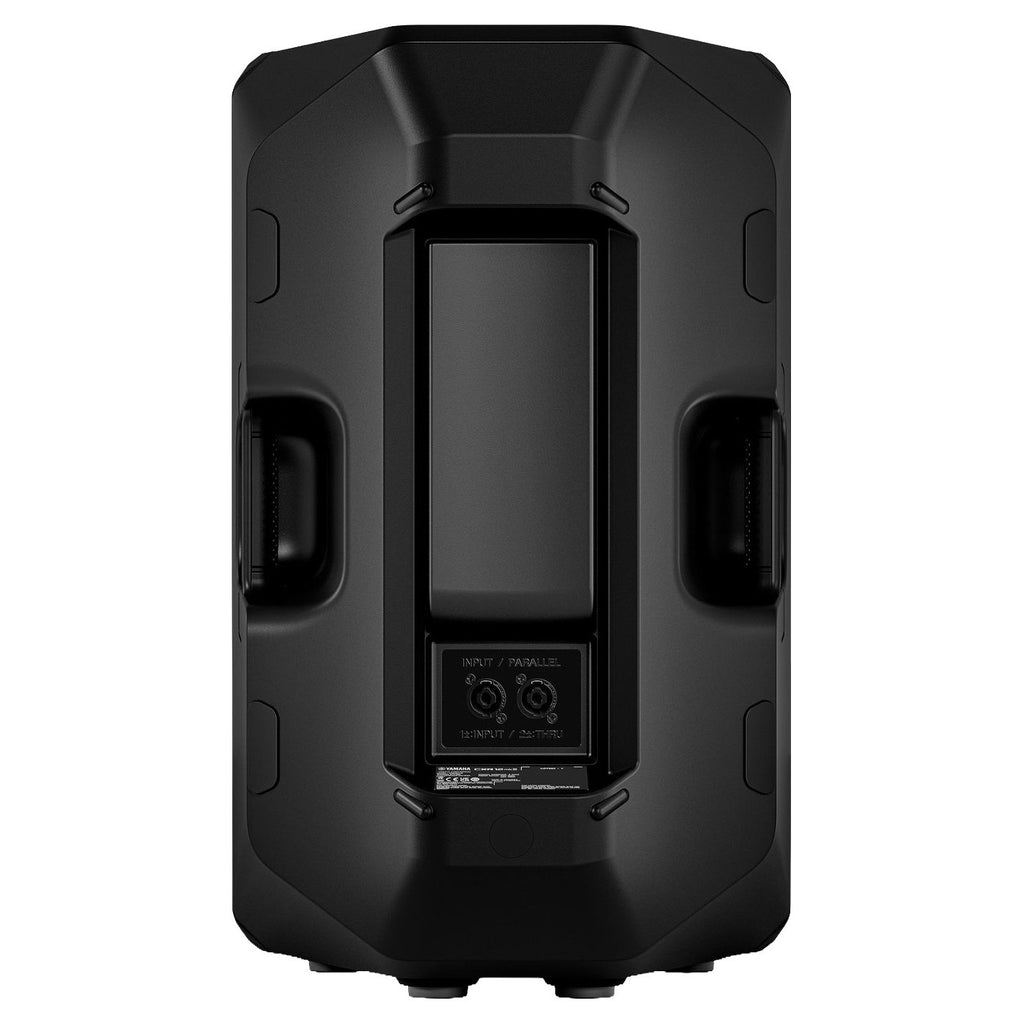

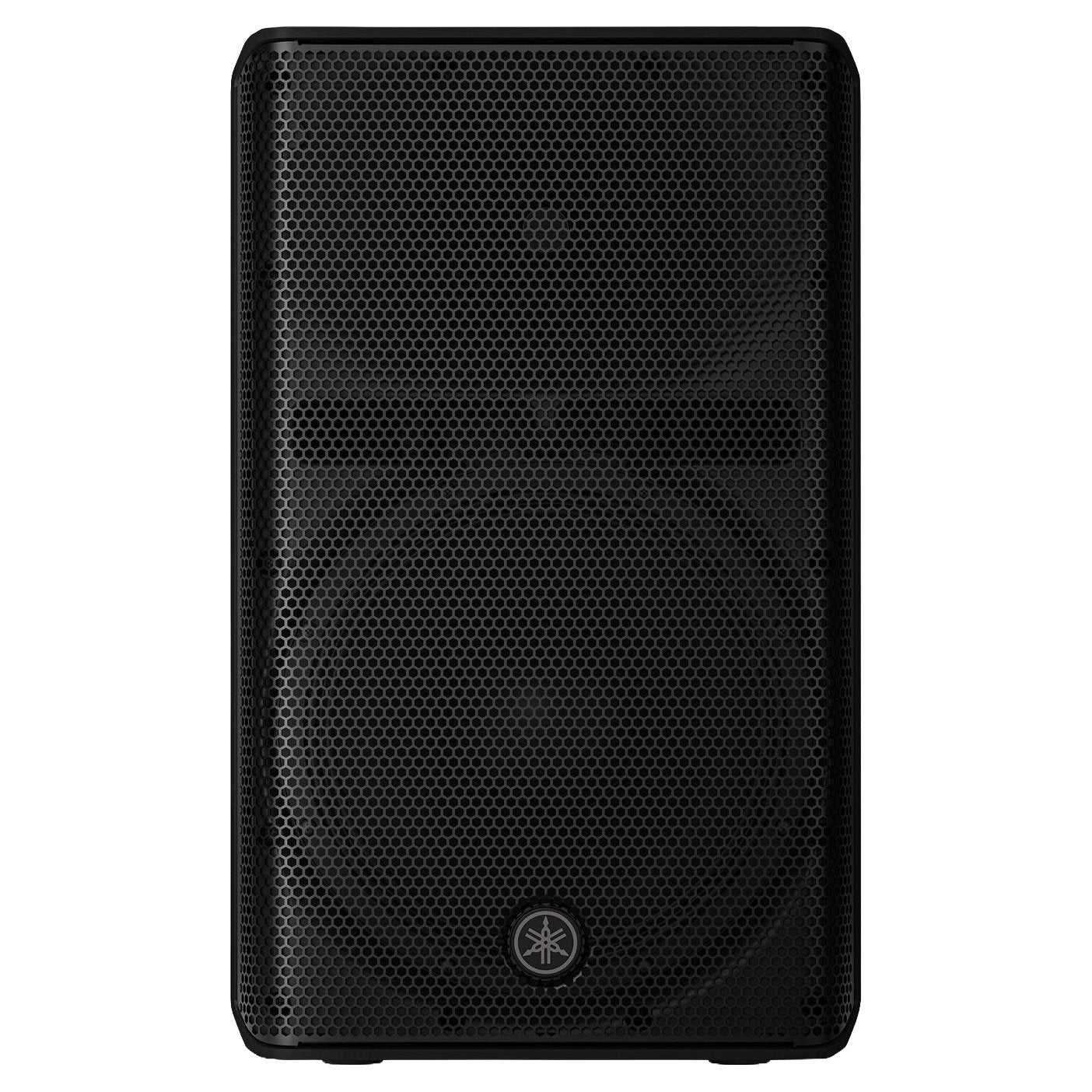

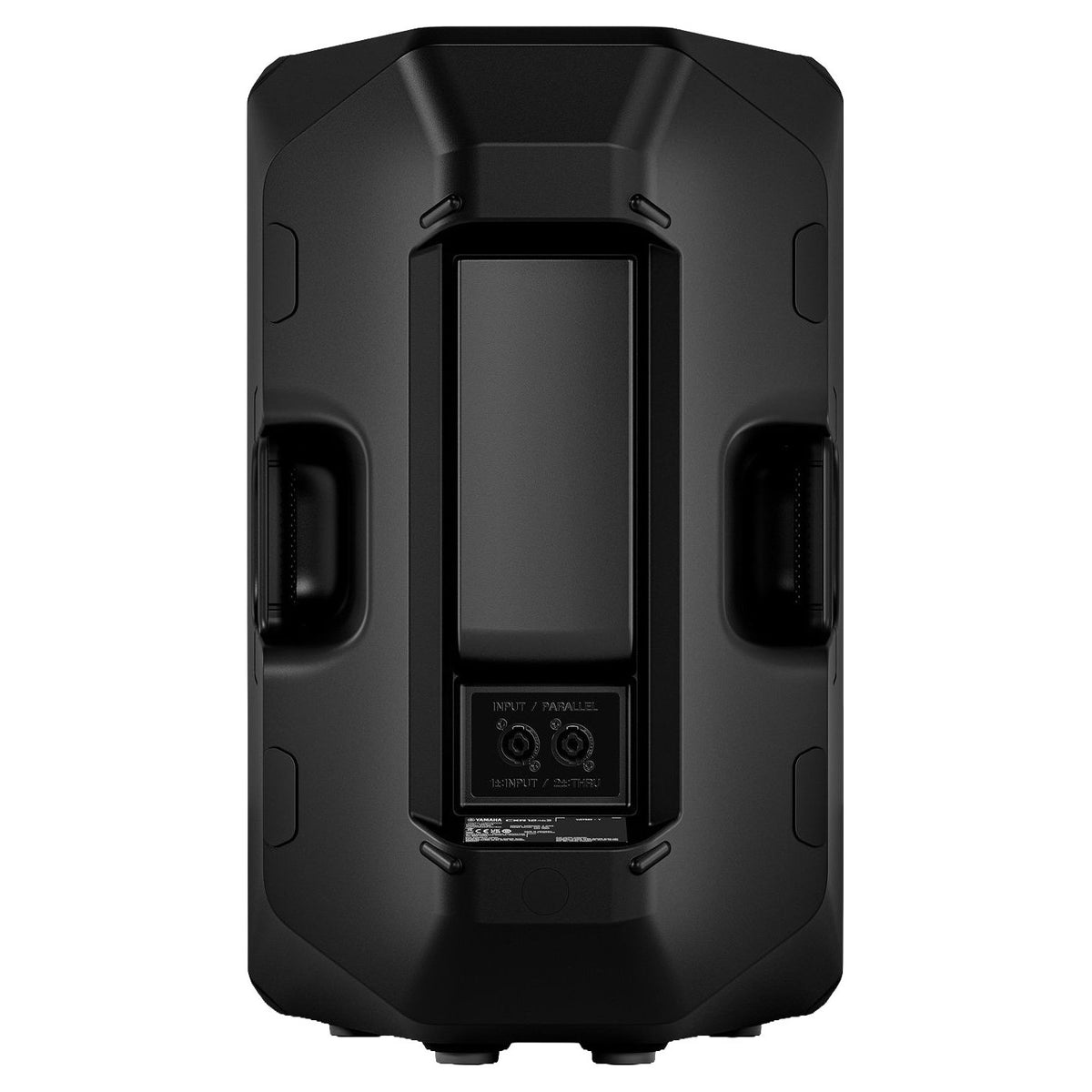

Yamaha CXR12MKIII Passive 12" Full Range Loudspeaker - Black

The Yamaha CXR12 mk3 is a passive 12" speaker that works well as a main PA speaker, a floor monitor, or a side fill. It needs an external amplifier to run, which makes it a flexible option for setups where you're already running a power amp. It handles up to 550W of program power and produces up to 124dB of peak SPL, which is plenty of volume for small to mid-sized venues. The lightweight molded enclosure is easy to move around, and dual pole mount sockets let you angle the speaker straight or tilted 7° down toward the audience. When paired with a Yamaha PX Series amplifier, you get access to tuning presets specifically dialed in for this speaker.

Features

• Works as a main PA speaker, floor monitor, or stage side fill
• Dual pole sockets: 0° straight or -7° angled down toward the audience
• Floor monitor angle of 52°

Specifications

Type

2-way passive bass-reflex loudspeaker

LF Driver

12" cone, 2.5" voice coil

HF Driver

1.75" compression driver

Frequency Response (-10dB)

51Hz–20kHz

Crossover Frequency

1.9kHz

SPL Sensitivity (1W/1m)

94dB

Maximum SPL (calculated peak)

124dB

Power Rating

275W (noise) / 550W (program) / 1100W (peak)

Nominal Impedance

8Ω

Coverage Pattern

90° (H) x 60° (V)

Connectors

2x speakON NL4MP

Dimensions (W x H x D)

366 x 600 x 350mm (14.4" x 23.6" x 13.8")

Net Weight

15.4kg / 34 lbs
