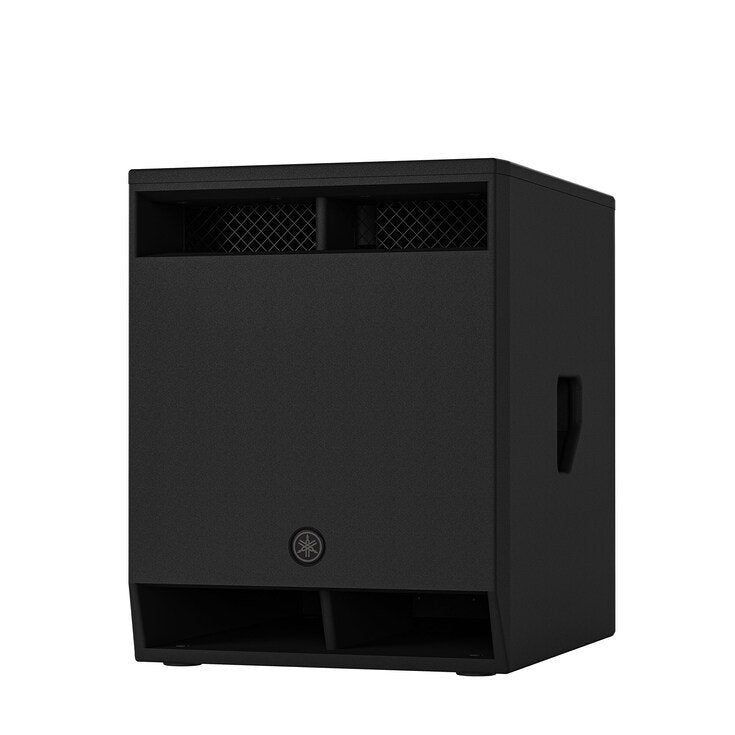

Yamaha CXS15MKIII 15" Passive Subwoofer

The CXS15 mk3 sits in the sweet spot for most professional applications. Enough driver to move serious air in mid-size venues, houses of worship, corporate event spaces, and outdoor setups, without the footprint and weight of an 18. It's the sub most systems actually need.

The CXS15 mk3 uses a bandpass enclosure design with Yamaha's own long-excursion 15" driver and 3" voice coil, engineered to minimize distortion and wind noise even at high output levels. The cabinet is plywood with a scratch-resistant polyurea coating, built to take the wear of regular transport and installation. Dual M20/35mm pole sockets give you flexibility in how you configure it, and optional covers and caster kits are available for touring or mobile applications.

Pair it with a Yamaha PX or PC-D Series amplifier and you unlock dedicated DSP presets, cardioid mode for stage-side bass reduction, and full system optimization. Works seamlessly with CXR mk3 full-range speakers as a matched system.

• Driver: 15" cone, 3" voice coil
• Frequency Range: 40-180Hz (passive) / 35-140Hz (with DSP)
• Sensitivity: 95 dB SPL
• Peak SPL: 126 dB SPL
• Power (Noise/PGM/Peak): 325W / 650W / 1300W
• Impedance: 4 ohms
• Connectors: speakON NL4MP x2 (1 in, 1 out)
• Pole Socket: 35mm / M20 threaded
• Dimensions (WxHxD): 18.9" x 24.1" x 24.2"
• Weight: 77.2 lbs
• Finish: Polyurea, Black
• Options: Cover: SPCVR-DXS153, Casters: SPW-1
